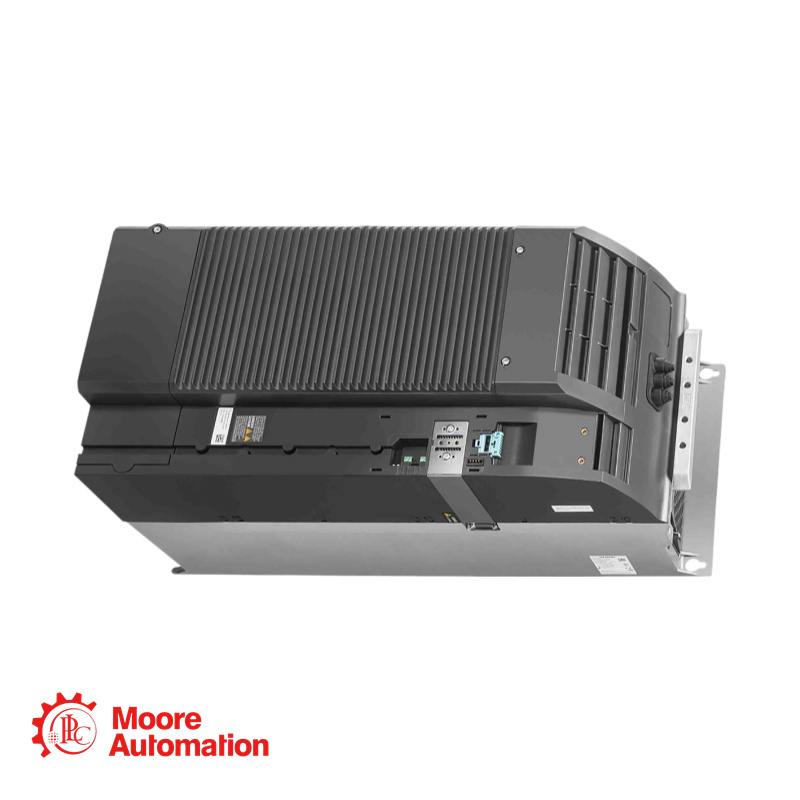

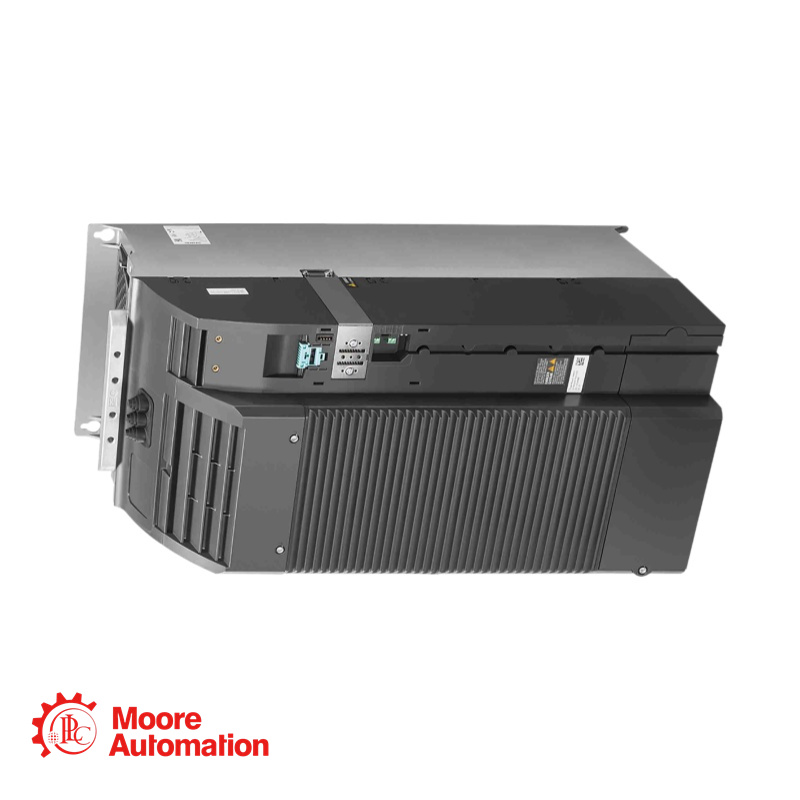

SINAMICS G120 POWER MODULE PM240-2 WITH BUILT IN CL.
Marke :
SiemensArtikelnummer :
6SL3210-1PE31-8AL0Gewicht :
63 kgAbmessungen :
357 mm*305 mm*708 mmHerkunftsland :
GermanyHS-Code :
8537101190Beschreibung :
Power Module
|
Siemens 6SL3210-1PE31-8AL0 Power Module |
|
SINAMICS G120 POWER MODULE PM240-2 WITH BUILT IN CL. A FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 75KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 90kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 708 X 305 X 357 (HXWXD), FSF PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8
Input Number of phases:3 AC Line voltage:380 ... 480 V ±10 % Line frequency:47 ... 63 Hz Rated current (LO):172.00 A Rated current (HO):154.00 A Output Number of phases:3 AC Ambient temperature Operation LO:-20 ... 40 °C (-4 ... 104 °F) Operation HO:-20 ... 50 °C (-4 ... 122 °F) Transport:-40 ... 70 °C (-40 ... 158 °F) Storage:-40 ... 70 °C (-40 ... 158 °F)
|
|
Get Best Price - Please Contact Frida |
|
|
Phone/Whatsapp: +86 15359408275 |
|
|
Email: sales5@mooreplc.com |
|
|
6SL3210-1PE31-8AL0 Power Module FAQ |
||
|
What is the meaning of "AL0" at the end of the part number?
"AL0" indicates that the Power Module has an integrated Line Filter Class A (EMC filter) and comes with an unvarnished (standard) electronic board. (Note: "UL0" means unfiltered version).
What is the difference between Low Overload (LO) and High Overload (HO) for this module? Low Overload (LO): Used for centrifugal pumps, fans, and conveyors. It allows 110% base-load current for 60 seconds within a cycle time of 300 seconds. High Overload (HO): Used for constant torque applications like elevators or cranes. It allows 150% base-load current for 60 seconds within a cycle time of 300 seconds.
Which Control Units (CU) are compatible with this Power Module? It is compatible with SINAMICS G120 Control Units such as CU240E-2 series (e.g., Profinet, Profibus, Modbus) or CU250S-2 series (for vector control and positioning).
Product Series: SINAMICS G120 power modules
The SINAMICS G120 Power Modules (specifically the PM240-2 generation) represent the hardware core of the modular SINAMICS G120 standard inverter system. Designed to drive three-phase asynchronous (induction) motors, synchronous motors, and reluctance motors, these modules are engineered to handle the conversion of electrical energy from the line supply into variable-frequency power for precise motor speed and torque control.
|
||
|
